Satnogs Tracking Antenna Project

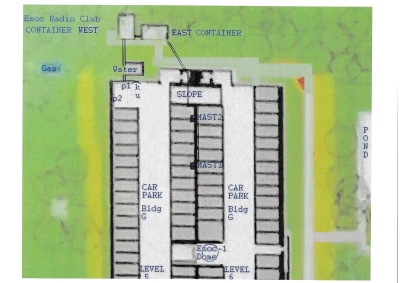

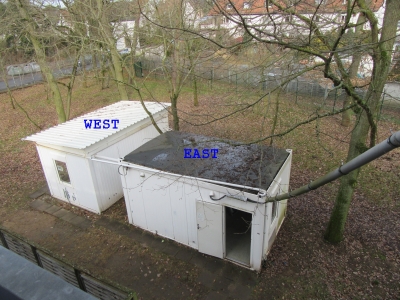

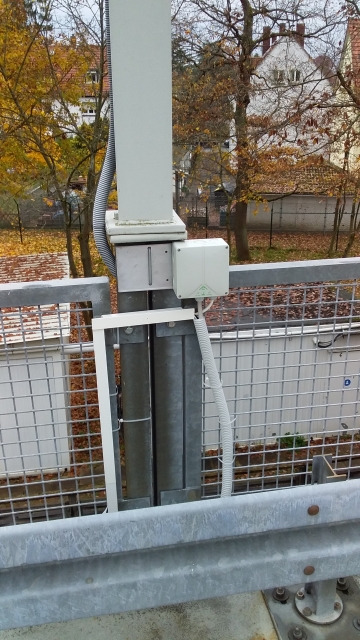

Temporary car park roof location - properly coned!

Joint project of the Radio Club and Cybernetics Club. Installed at Esoc by Mark and Greg.

Many previous contributors: Tom, Dominik, Artur, Bernard, Ivan. Satnogs uses 3D printed mechanical parts, NooElec SDR, GNU Radio, GPredict, Arduino, Raspberry Pi 3b+, Stepper Motors for Elevation and Azimuth, 6kg low cost design.

Satnogs.org

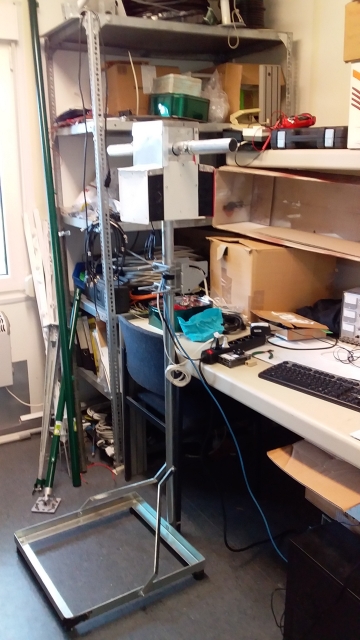

In container on balcony stand. Mains powered version.

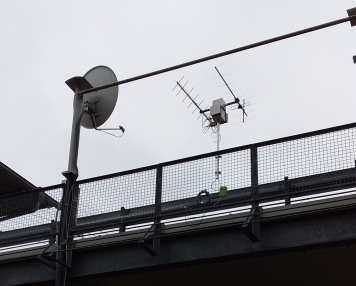

Eumetcast Eutelsat 10E dish. Satnogs tracking antenna.

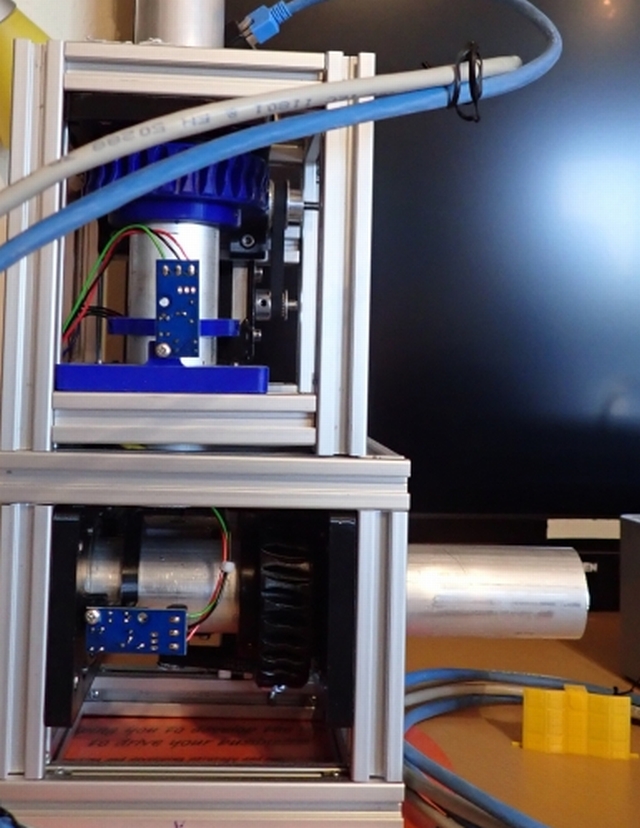

Aluminium replaced with plastic

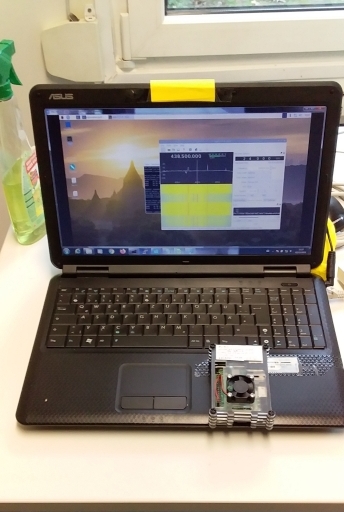

VNC to Raspberry Pi. GQRX SDR screen.19V DC wiring to car park roof

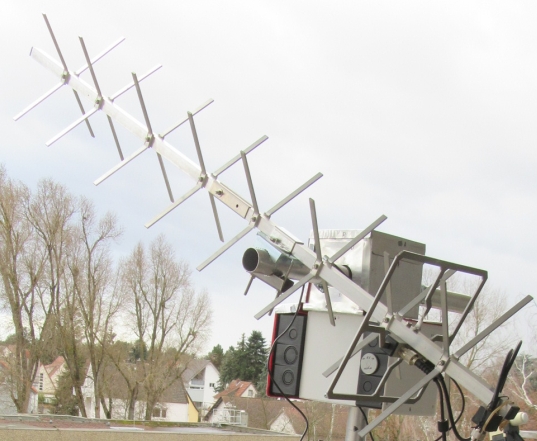

Balcony early tracking version

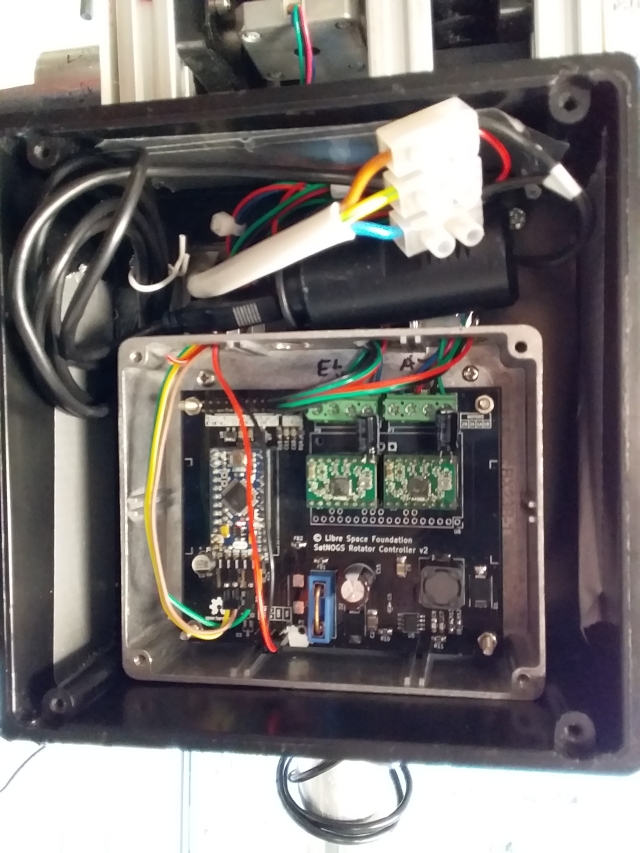

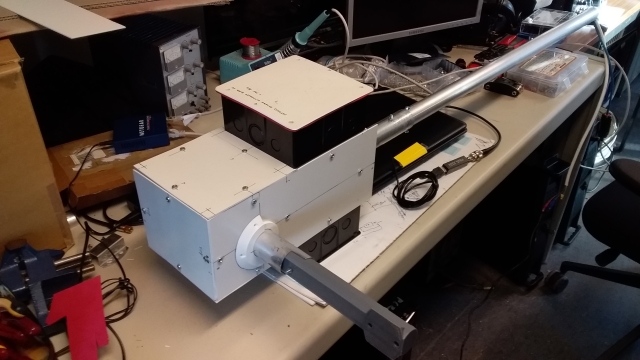

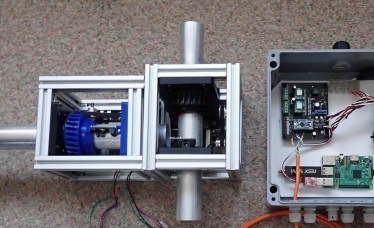

Controller board. 19-5V psu car-adapter. Frame and mechanics. Opssat model.
